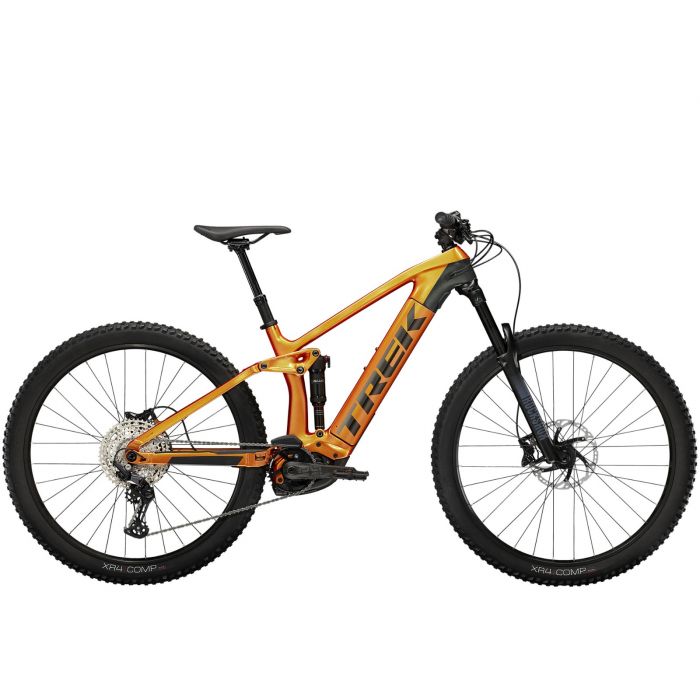

Trek Rail 9.5 - Factory Orange/Lithium Grey - 2022
Delivery & Returns
FREE SHIPPING ON ORDERS OVER £100
Free Shipping applies to orders for goods over £100 (excluding e-bikes & cycles).
You may return any products you have purchased within 14 working days of delivery for any reason.
Please note: All e-Bikes can be purchased online, once payment is received, we will contact you to arrange for you to collect your bike from our Lisburn showrooms. All bikes are PDI’ed (pre-delivery inspection) by a qualified cycle technician prior to collection and handover. We can arrange delivery but this can incur additional costs.
You’re looking for a long-travel e-MTB, and you want the muted ride feel of a full carbon frame. You prefer to spend your hard earned cash on a frame, then upgrade your parts in the future.
An OCLV Mountain Carbon frame with 150 mm of rear travel that fully encases a 625 Wh battery, an e-MTB optimized 160 mm RockShox 35 Gold RL fork, a powerful Bosch Performance Line CX (250 W, 85 Nm) motor that assists up to 20 mph (25 km/h in Europe) and a Purion controller. Plus, a 1x12 Shimano Deore drivetrain with a wide gear range so you can always find the ideal cadence for the motor, a dropper post, powerful 4-piston brakes for more downhill confidence and 29er Bontrager wheels with nimble yet grippy 2.6" tyres.
|Fork||RockShox 35 Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel|
|Shock||RockShox Deluxe Select+, 230 mm x 57.5 mm|
|Max compatible fork travel||170mm (580mm axle-to-crown)|
|Hub front||Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle|
|Hub rear||Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle|
|Rim||Alex MD35, tubeless compatible, 32-hole, 35 mm width, Presta valve|
|Tyre||Bontrager XR4 Comp, wire bead, 30 tpi, 29x2.60"|
|Max tyre size||Frame: 29x2.60" Fork: See manufacturer|
|Shifter||Shimano Deore M6100, 12-speed|
|Rear derailleur||Shimano Deore M6100, long cage|
|Crank||E*thirteen E*spec Plus, 34T, 165 mm length|
|Cassette||Shimano Deore M6100, 10-51, 12-speed|
|Chain||Shimano Deore M6100|
|Pedal||VP-536 nylon platform|
|Max. chainring size||34T|
|Saddle||Bontrager Arvada, steel rails, 138 mm width|
TranzX JD-YSP18, 100 mm travel, internal routing, 31.6 mm, 361 mm length
Bontrager Line Dropper, 100 mm travel, internal routing, 31.6 mm, 345 mm length
|Size: M, L, XL
TranzX JD-YSP18, 130mm travel, internal routing, 31.6 mm, 425 mm length
|Size: M, L, XL
Bontrager Line Dropper, 125mm travel, internal routing, 31.6 mm, 395mm length
|Handlebar||Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width|
|Grips||Bontrager XR Trail Comp, nylon lock-on|
|Stem||Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length|
|Brake||Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper|
|Brake rotor||Shimano RT76, 6-bolt, 203 mm|
|Weight||M - 23.87 kg / 52.63 lb (with TLR sealant, no tubes)|
|Weight limit||This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).|
|Gender||Men's, Women's, Unisex|
|Motor||Bosch Performance Line CX (Gen4) - 85Nm|
|Style||MTB - Full Suspension|
|Weight Range||20 - 24|
