Merida eSCULTURA 400

In Stock - Click & Collect
SKU

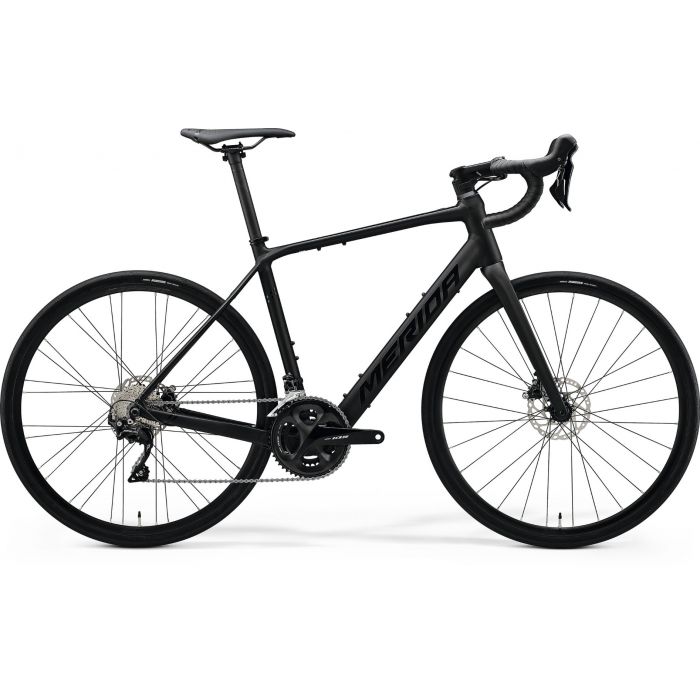

Merida eSCULTURA 400
From £2,500.00 Was £3,200.00

Delivery & Returns

FREE SHIPPING ON ORDERS OVER £100

Free Shipping applies to orders for goods over £100 (excluding e-bikes & cycles).

Returns

You may return any products you have purchased within 14 working days of delivery for any reason.

Please note: All e-Bikes can be purchased online, once payment is received, we will contact you to arrange for you to collect your bike from our Lisburn showrooms. All bikes are PDI’ed (pre-delivery inspection) by a qualified cycle technician prior to collection and handover. We can arrange delivery but this can incur additional costs.

Frame: eSCULTURA LITE
  • material: aluminium
  • 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize
  • 100x9/135x9mm axle standard
  • BSA bottom bracket standard
Fork: MISSION CX CF3
  • material: carbon
  • 700x35C max wheelsize
Drive unit: MAHLE X35+ Hub Engine - 40Nm

Battery: MAHLE B1-C - 250Wh

Hubs: VP CLK170F
  • 100x12mm width front hub
  • 28 spoke holes
  • Centerlock
Chainwheel: Shimano 105
  • 50-34 teeth
  • 170 mm-XS/S/SM/ML, 175 mm-L/XL
Crank size: 170 mm-XS/S/SM/ML, 175 mm-L/XL

Cassette: Shimano 105
  • 11-32 teeth
  • 11 speed
Front derailleur: Shimano 105

Rear derailleur: Shimano 105

For full product details, please visit Merida UK here
Frame Size XS S M L XL
Tyre Sizes 28" 28" 28" 28" 28"
Frame Size cm 47 49 51 53 56
St Seat Tubes mm 470 490 510 530 560
Tt Top Tubes mm 525 540 555 570 585
Cs Chain Stays mm 431 431 431 431 431
HTA head tube angle [°] 69.5 70 70.5 71 71.5
STA seat tube angle [°] 75 75 75 75 75
Bd Bottom Bracket Drops mm 70 70 70 70 70
Ht Head Tube Lengths mm 145 160 175 190 205
Fl Fork Lengths mm 400 400 400 400 400
R Reach mm 374 384 395 406 416
S Stacks mm 565 581 597 613 629
Wb Wheel Base mm 1032 1044 1055 1066 1076
Sh Stand Over Height mm 748 767 785 804 830
More Information
Gender Men's
Motor MAHLE X35+ Hub Engine - 40Nm
Style Road
Tyre Size 700c
Weight Range 10 - 14
